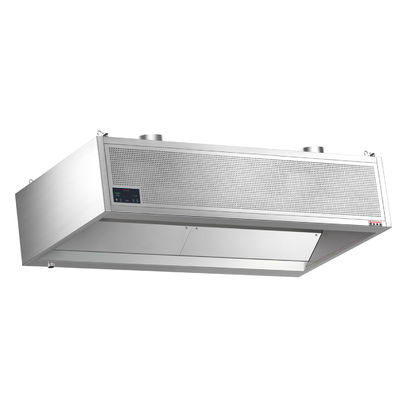

UV Hood (2200mm length)
  • name

UV Hood (2200mm length)

MOQ: 1 Unit
Price: Negotiable
Standard Packaging: Wooden case
Delivery Period: 10-15 working days
Payment Method: T/T, Western Union
Supply Capacity: 2000 units per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Scooker
Certification
RoHS
Model Number
ZC-YUV22
Air Volume (m3/h):
Q≥6000
Size Of Air Outlet (LxW)mm:
700*300
Oil And Odor Removal Rate:
90%
Power Supply:
220V/50Hz
Overall Power (Kw):
0.5
Matching Furnace Type:
Twin Burners
Lighting Power:
32W
Outlet Direction:
Upper Wind
Color:
Silver Gray
Size(mm):
2200*1300*560
Product Description
Physical separation and ultraviolet decomposition technology are used to efficiently deal with grease and oil smoke odors.
Built-in cyclone to intercept most of the large particles of grease efficiently.
Built-in imported UV lamp, efficient decomposition of small particles of grease and peculiar smell.
The inside of the hood is designed with a transparent structure to improve the effiect of oil smoke collection.
The hood has a make-up air interface to save kitchen space, and a post air supply outlet to improve the working environment of the chef.
High-quality general LED tubes are used, with excellent lighting effiect and convenient maintenance.
Full modular knot design, easy to assemble, handle, install, save logistics costs.
Jet technology: Built-in jet air curtain fan, which can effectively control the overflow of oil smoke and improve the efficiency of oil smoke absorption and repair.
Full LCD screen operation, 1 million times long life, respectively:on/off, set cleaning time, light switch, air curtain on.
Humanized protection function: It has the protection function of fan if not starting, UV door opening, and light baffle displacement and shutdown protection.
UV lamp life countdown display: real-time display of the cumulative working time of the lamp, the cumulative working time of the UV tube
reaches the set value, the equipment limit starts, and the lamp is replaced to resume work.
Countdown display for daily maintenance and cleaning.
The cleaning and maintenance period can be set according to diffierent lampblack working conditions.
After the cleaning is completed, the working time can be reset so that the equipment can work normally and maintain the performance of the
equipment and the working environment of the chef.
Display fault causes all in Chinese, efficient handling problems.
Real-time display working voltage and working current.
Optional automatic cleaning system.
