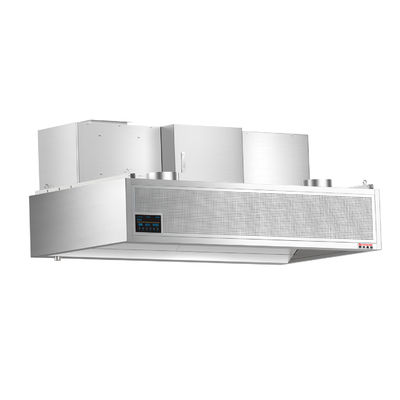

Physical Separation Electrostatic Purification Hood (with fan 1800mm length)

MOQ:	1 Unit
Price:	Negotiable
Standard Packaging:	Wooden case
Delivery Period:	10-15 working days
Payment Method:	T/T, Western Union
Supply Capacity:	2000 units per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Scooker

Certification

Model Number

ZC-YJDM18

Air Volume (m3/h):

Q≥4000

Size Of Air Outlet (LxW)mm:

340*260

Oil And Odor Removal Rate:

Power Supply:

3-380V/50Hz

Overall Power (Kw):

Matching Furnace Type:

Twin Burners

Lighting Power:

Outlet Direction:

Default Front Outlet

Color:

Silver Gray

Size(mm):

1800*1300*1000

Product Description

Adopt physical separation and high voltage electrostatic adsorption technology to deal with oil smoke efficiently, and the test puri cation effect is up to 98%.

The inside of the hood is designed with a transparent structure to improve the effect of oil smoke collection.

The hood has a make-up air interface to save kitchen space, and a post air supply outlet to improve the working environment of the chef.

High-quality general LED tubes are used, with excellent lighting effect and convenient maintenance.

Full modular knot design, easy to assemble, handle, install, save logistics costs.

High-speed dynamic separation disc design, most of the grease and water vapor are shielded and separated, and are drained and recovered

through the diversion groove, and the rear fuselage will not adhere to the oil stain, reducing the risk of fire.

Rear high-efficiency electrostatic field, adsorption of escaping small particles of fume, exhaust outlet visual inspection smokeless.

Full touch screen operation, 1 million times long life, respectively: on/off, set cleaning time, restart time, adjust up, down, exhaust and other functions.

Innovative soft start, self-test before power-on, and start working after the environment and key components are normal, which greatly improves the service life.

Four protection functions: open circuit, short circuit, flash circuit, over-tempera-ture, over-current circuit protection function.

Purification efficiency prompt: first-level purification, second-level purification, third-level purification, and fourth-level purification display, only four-level purification will trigger the "cleaning" prompt.

The cleaning cycle can be set according to different lampblack working conditions.Afterthe cleaning is completed, the equipment can work normally only after pressing "Restart timing"to maintain the performance of the equipment and the working environment of the chef.

Real-time display of equipment maintenance countdown reminders.

Display fault causes all in Chinese, efficient handling problems.

Real-time display working voltage and working current.

Real-time display of oil removal, smoke removal, odor removal and exhaust working status.

Optional automatic cleaning system, which can continue to meet the requirements of Beijing landmarks.
